Intellitec 00-00192-000 Monoplex Gen-Set 2

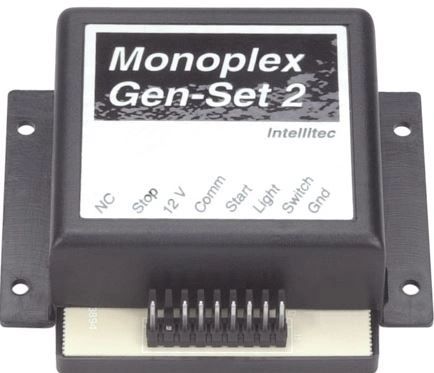

Intellitec 00-00192-000 Monoplex Gen-Set 2 Description Intellitec MPX Gen Set 2 Controller #00-00192-000 MPX Gen Set 2 Controller is a 9 pin connections with the following connections: Ground Switch Light Start Common 12 Volt Stop No Connection Requires MPX Brown Control Switch Part # 00-00183-000 Specifications: Operating voltage 10.0-16.0 volts DC Low current 7.5 Amps Low side High current 15.0 Amps high side Standby draw 2.0 milliamps Operating Temp -40?C to +85?C -40?F to 185?F Warranty Terms: 1 Year
